3D Printing

Equipment and Accessories Hacks & DIY
21

20241223_020635
20241223_0206351920×2560 373 KB

20241223_020625
20241223_0206251920×2560 492 KB

20241223_020427
20241223_0204271920×2560 305 KB

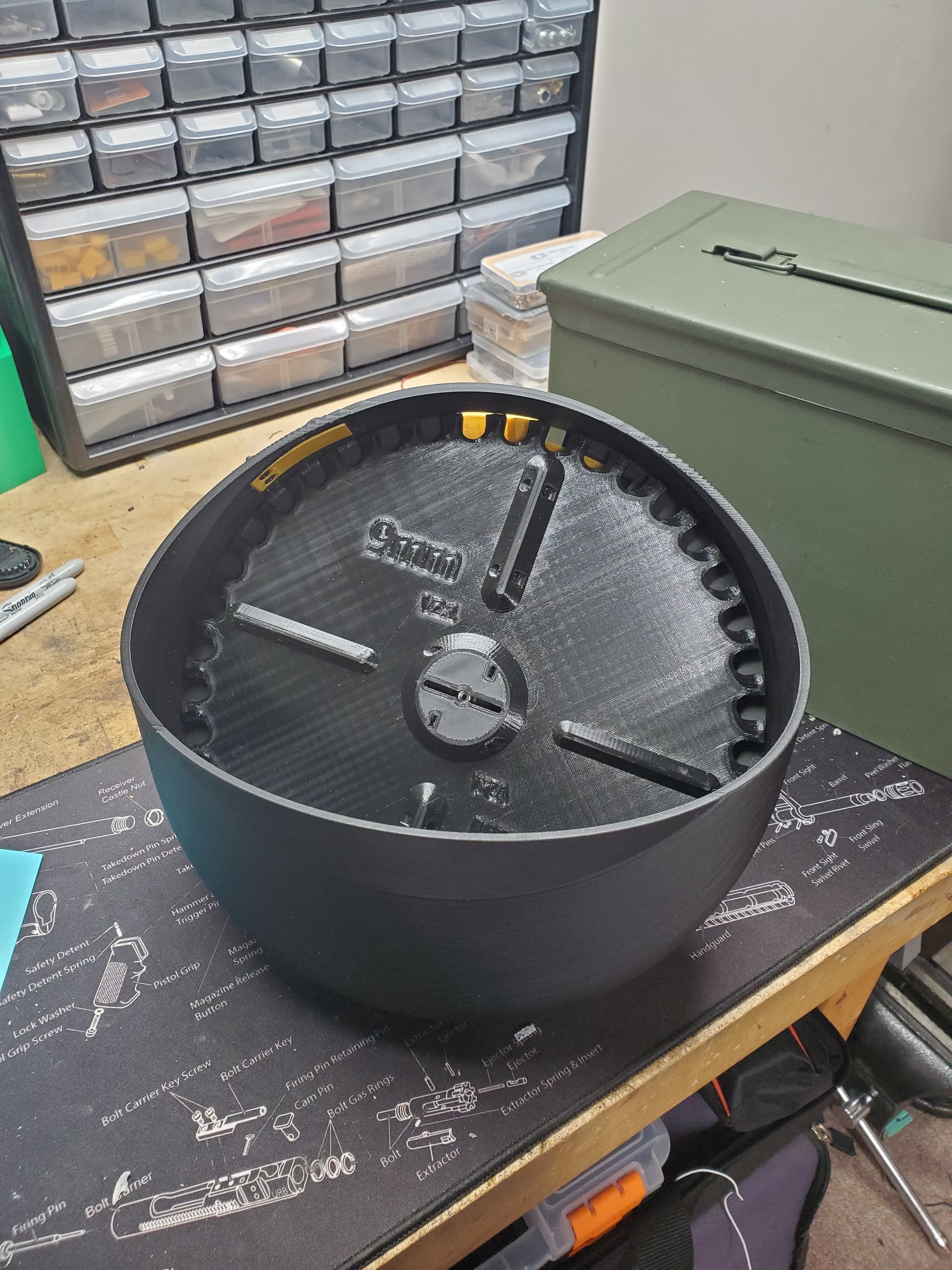

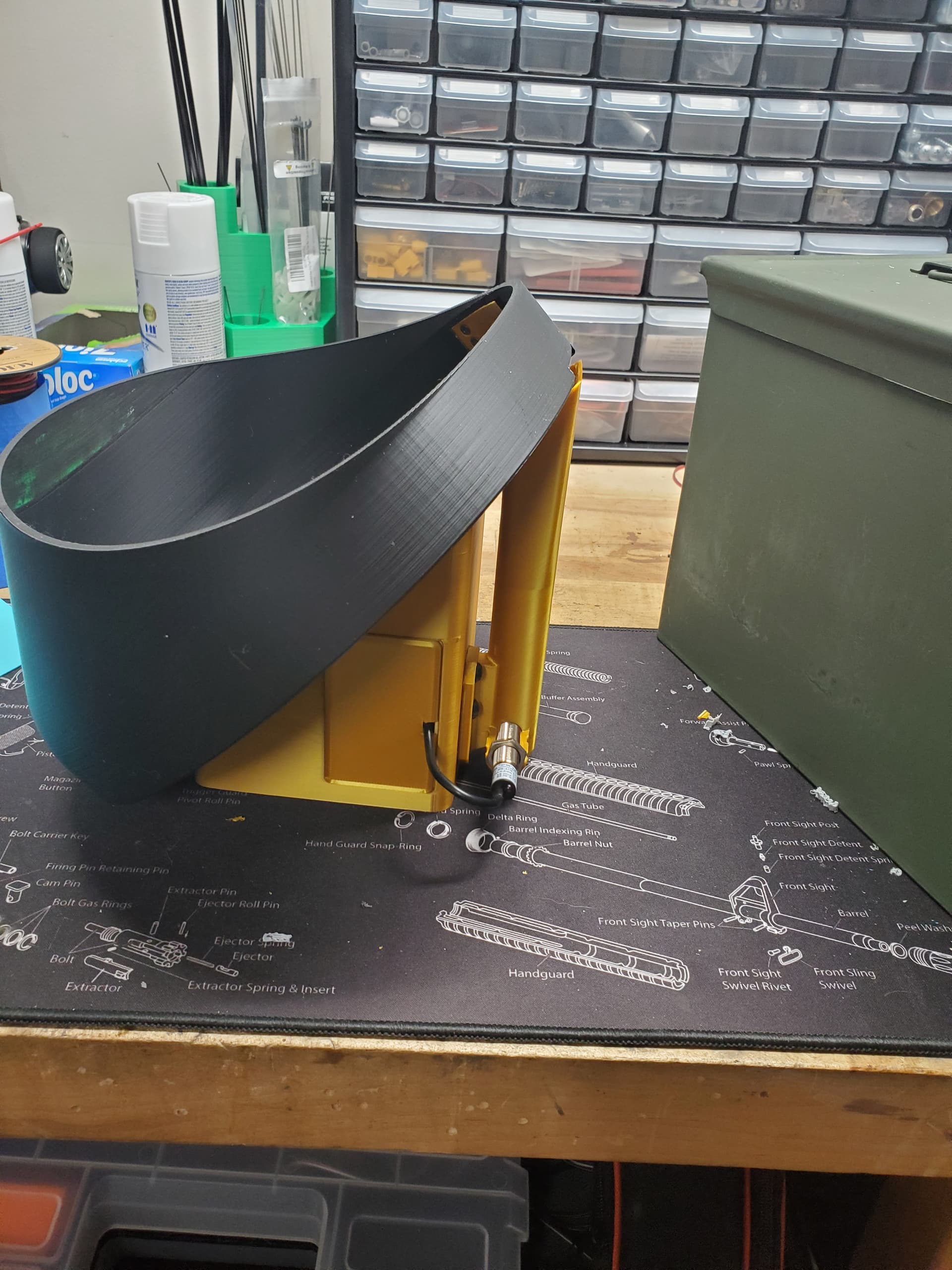

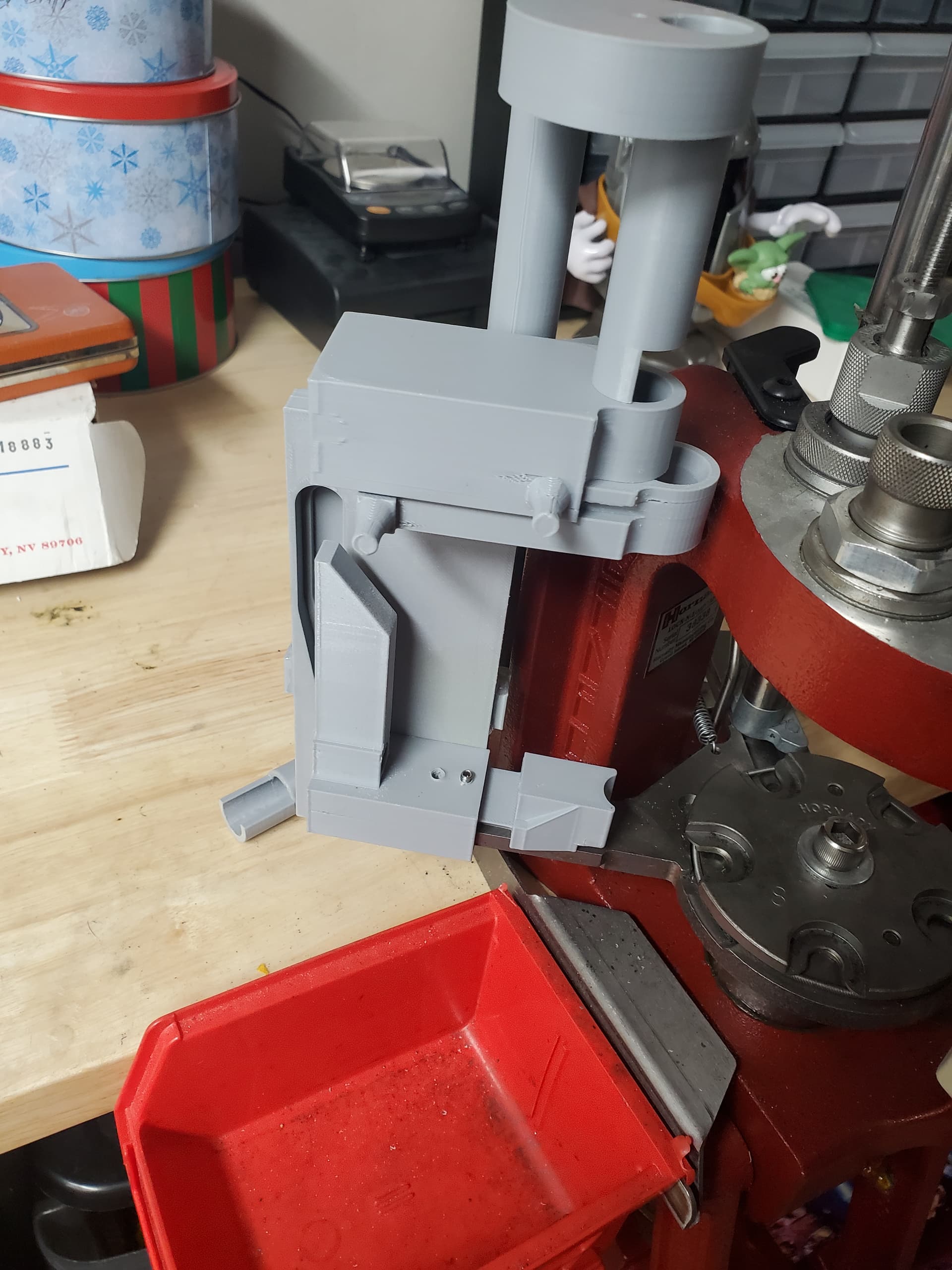

Everything is working, just need to figure out how to mate the auto feeder to the press feeder. Its sifting and dropping 9mm case without issues. I’ll have to figure out a plate option for .45acp, as they dont fit.

All in, the files were free, about 2 rolls of PETG at $21 a piece. $15 for the motor $8 for the sensor, $6 dollar 12v relay and a power switch. $12 12v power supply.

The rest if just miscellaneous hardware nuts and bolts and bearings.

Even if you had to buy assorted boxes of screws etc, this project comes out to less than 100 bucks.

3 Likes
22

20241231_012826
20241231_0128261920×2560 338 KB

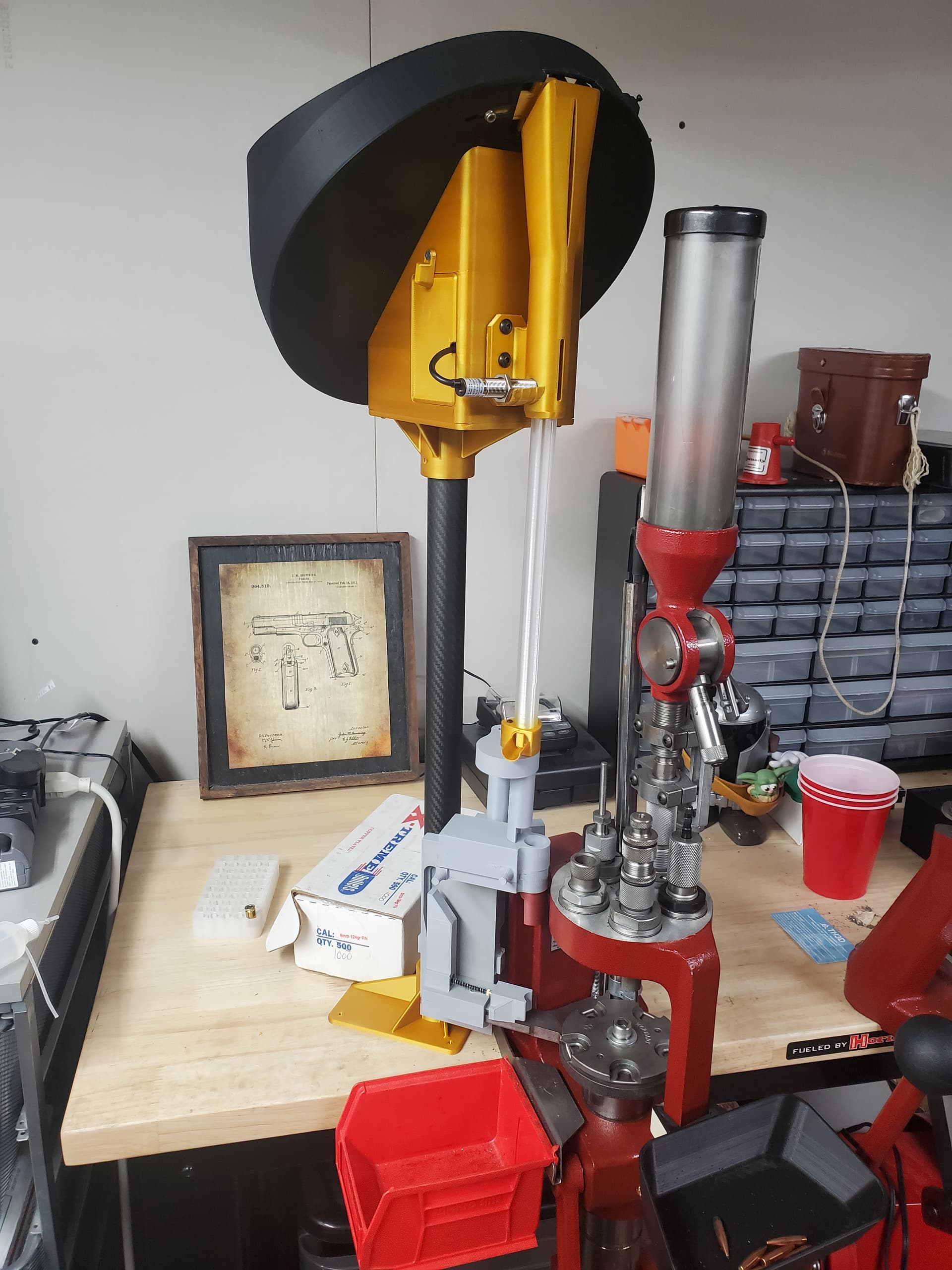

We’re cooking! Projected turned out to be rather easy, i even added a second sensor location to rig up a second sensor to empty the tube before turning the motor back on.

2 Likes
23

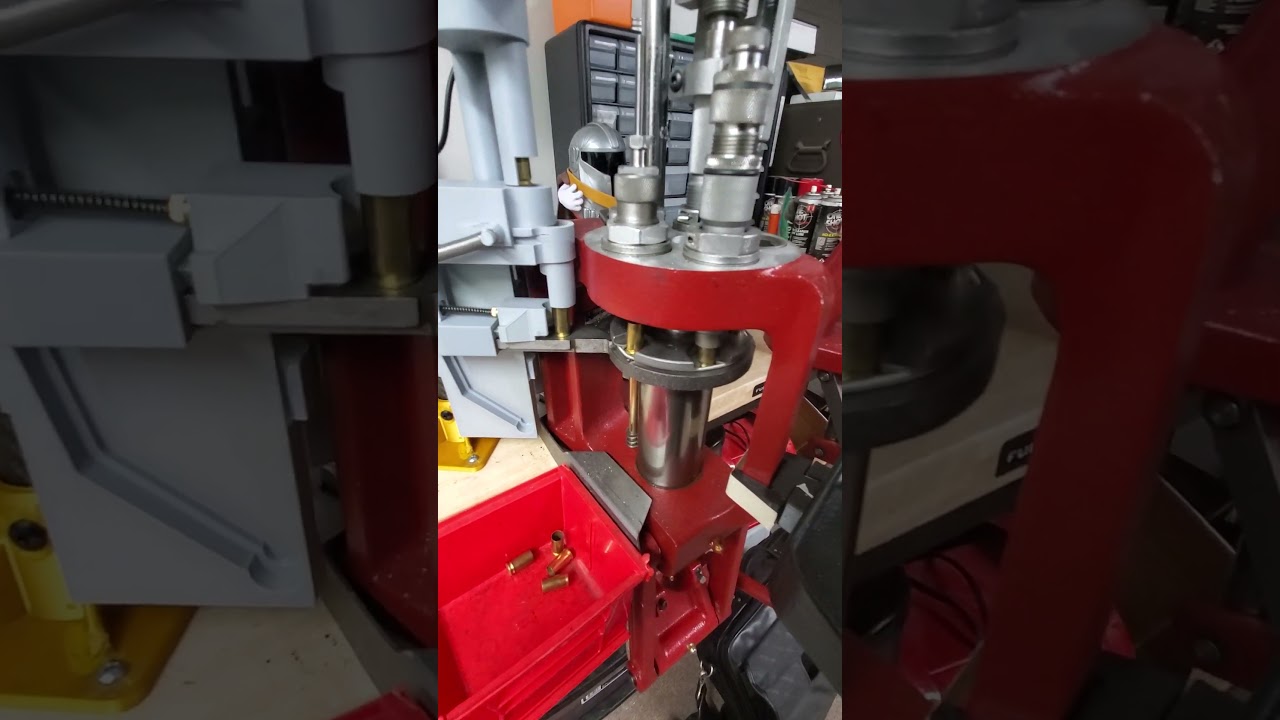

Looks like i will be cranking out some ammo this week. I got the lower sensor programmed using Arduino. Tube fills with shells and refills when emptied.

3 Likes
